Improvements in Geotechnical Design - New options in design of retaining walls

Point of application of earth force in seismic design according to EN1998-5 par. 7.3.2.3. (4) and (5) this is from 1/3 to 1/2.

In foundations of steel columns, the water depth over the foundation level has been added.
This affects the footing self weight.

In footings of steel columns an additional horizontal force for uplift conditions has been added.

In retaining walls you have the selection to use separatelly reinforcement for the base and the top of the wall. The basement is casted first with reinforcement dowels over the foundation.

New features in BETONexpress 07.11.2016

Set specific reinforcement

Some times, in concrete elements the reinforcements chosen by the program to satisfy the design in Ultimate Limit State (ULS), is not enough for the max crack or max deflection criteria of in Serviceability Limit State (SLS). To take this into account, a new option has been added.

In all the design objects: plates, beams, columns, footings, retaining walls, you can now specify the desired reinforcement.

If you do not check the Set specific reinforcement, the program computes the reinforcement as usual.
If the box is checked, you can specify the reinforcement more than needed for maximum moment in ULS. This reinforcement is used for the additional checks in Serviceability Limit State (SLS), and reinforcement schedules.

Punching shear for pates and flat slabs

Option for circular columns

Soil bearing capacity in fundaments and retaining walls

If the box EC7 Annex D is checked, the soil bearing capacity is computed from Annex D of Eurocode 7. The computations are done simultaneously as you change the dimensions of the structure.


Columns Crack width calculation

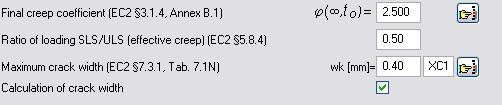

If the box Calculation of crack width is checked, the crack width wk is calculated. The load in SLS is computed from the Loading ration (ULS/SLS).

Free Update from the program's main menu.

Free Update from the program's main menu.

New features in BETONexpress 2015

• Flat slab, Punching shear
• Flat slab design
• Foundation Bearing resistance
• Fundaments of Steel columns
• Water basins
• Basement walls
• Bearing walls
• Walls with horizontal distributed load
• More info...

Cost of Upgrade 180 Euro

• Free update.

• Free update.

• Free update.

• Free update.
• Few adjustments.

• Free update.
• Few adjustments.

• Free update.

• Correction of ribbed plates.
• Automatic paper size to A4 at installation.
• Free update.

• Serviceability limit case (SLS), full analysis, deflection and crack control for plates and beams
• Isolated columns extended analysis with second order effects
• Tables and Design charts with Eurocode 2 as: Kd , med w, effective length
• Design charts for columns in single and double bending with compression.
• Design charts for deflection control.
• Implementation of of National Annexes for CEN member countries
• Design wirh Lightweight concrete.
• More info...


Cost of Upgrade 120 Euro. We will contact all our customers by e-mail.
When you request the new version you will receive a new address for the Upgrade.

If you update your BETONexpress from the main menu the ordinary way, you will not install the new version 07.11.2011, but the previous version before the latest upgrade.

BETONexpress can also run as a post processor of various Finite Element Programs (ANSYS, SAP2000,) to perform the concrete element design. The communication of BETONexpress with other programs can be done with a command file in simple text format. Each line of this Command line file describes an object that is going to be created in BETONexpress. Commands and data can be read in BETONexpress and the design objects are automatically created. The format of the command text file is described here.  Also in Annex of new User Manual.

New features:

• Limits for redistributed moments in continuous beams and plates, EN 1992-1-1 :2004, 5.5 (4).
  e_uk is needed to classify the steel at A,B,C classes, Eurocode2, Annex C. This new version is containing the default values for e_uk, but you must then reset the values of steel propertiers. Go to [Parameteres/reinforced steel properties], click on [Locked] to unlock, then [Reset] to take the new steel properties. This wil not reset other material properties of the program.

• Shear check for plates.

A new version of BETONexpress for concrete design adapted to the latest versions of Eurocodes is available.

Cost of Upgrade 120 Euro. We will contact all our customers by e-mail. If you request the new version you will receive a new address for the Upgrade.

If you upgrade your BETONexpress from the main menu the ordinary way, you will not install the new version 03.02.2007 with EN adaptions and automatic generation of CAD drawings. If you request the new version you will receive a different address for the Upgrade.

The new version includes all previous options.

New in BETONexpress Version 03.02.2007

For concrete design Eurocode 2, EN 1992-1-1:2004, Design of concrete structures, General rules and rules for buildings.

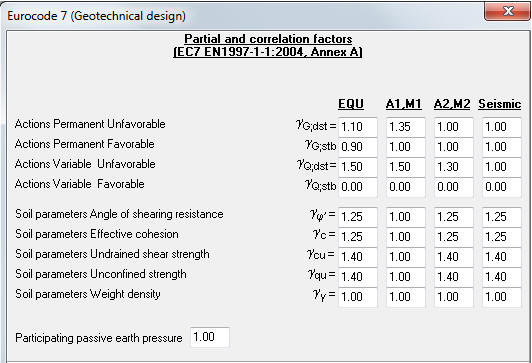

For geotechnical design, Eurocode 7, EN 1997-1:2004, Geotechnical design – General rules.
For concrete design you can now choose Eurocode 2, EN 1992-1-1:2004 or (EC2) ENV 1992 Design of concrete structures.
For geotechnical design you can choose Eurocode 7, EN 1997-1:2004, Geotechnical design – General rules or (EC7) ENV 1997 Geotechnical design

What more is new:
� Automatic generation of CAD drawings for spread footings, retaining walls, corbels and deep beams.
� Steel schedule for every design object in the end of its report.
� Export of Report to PDF and Word format.
� New adjustments of report, references aligned, bold. etc.
� New algorithm for steel bar selection.
� Choose units for rebar representation in reports.
� Adjustments of Reinforcing steel bar weight.

Plates
� Continuous plates - Coefficient of load distribution (k) for each span.
� Two way slabs - Computation of design bending moment values based on tables by Czerny and Bares

Beams
� Axial force (tension or compression) in section forces.
� Small eccentricity

Columns
� The diagrams for single and double bending are computed by numerical integration of forces over the cross section, and they are shown in the report.
� Diagrams for column section capacity in single and double bending and FRP strengthened columns

Footings
� Depth of footing, and soil weight over footing
� Negative (upwards) axial load
� Loading cases Geo, STR, EQU according to EC7
� CAD drawings
� In Parameters/Parameters for reinforced concrete/Footings you can specify if you want for the min and maximum reinforcing steel areas to apply the requirements for plates �9.3.1. Eurocode 2 is not clear on this subject.

Retaining walls
� More wall shapes
� Loading cases Geo, STR, EQU according to EC7
� CAD drawings
� In Parameters/Parameters of retaining walls/Eurocode 2 you can specify if you want for the min and maximum reinforcing steel areas to apply the requirements for plates �9.3.1. Eurocode 2 is not clear on this subject.
� base key, to improve sliding conditions

Corbels
� CAD drawings

Deep beams
� CAD drawings

To install this version, enter BETONexpress/Update. .

Save to disk and unzip to where the program is already installed.

This upgrade is still based on the ENV version of Eurocode 2. The upgrade is free of charge.

After the upgrading, when you first run the program again, we advise you to go to the menu Parameters/View parameters settings and click on [RESET to all original values] in order to reset to the new default values.

For old files you have to recompute the design objects.

 In this version, Ver. 05.11.06, following improvements and additions are done:

• Automatic calculations as you alter the input data, and direct preview of full report.

• New design of reports, with alignment of the references at the right of the page. (this option can be canceled from Report setting/Paragraphs/Align references at right.)

• Reinforcement schedule is added in the end of each design object in the report. (this option may be canceled from Report setting/Graphic etc../ include rebar schedule in report)

• Export of report with drawings to PDF and Word files.

• You can select units for the rebar representation in the report from Setup/Units in report.

• You can adjust the rebar weight from Reinforcing steel properties/Weights.

 Plates

• Two ways plate analysis. The method of Czerny is added.

• In continuous plates, a load factor has been added at each span, to take care the two way load distribution in some cases.

 Beams

• Small eccentricity (solution diagrams included in report)

• Axial force (compression or tension)

Columns

• New approach for single and double eccentricity with numerical integration. M-N diagrams obtained from numerical integration are included in the report.

• Column capacity, and column capacity with FRP. Diagrams have been added in the report.

Footings

• The depth of footing and the soil weight have been introduced.

• Negative (upward axial Load ) can be specified.

• The minimum reinforcement can be evaluated as plates (option Parameters of Reinforced concrete/Footings/requirements for min-max reinforcement as slabs), as the Eurocode is not clear on the subject.

Retaining walls

• More Wall shapes included.

• The minimum reinforcement can be evaluated as plates (option Parameters of retaining wall/Eurocode 2/requirements for min-max reinforcement as slabs), as the Eurocode is not clear on the subject.
