EUROCODEexpress    Go to order

A integrated and comprehensible software including all the structural Eurocodes. It is a work and studying companion for all the Eurocodes, from Eurocode 0 to Eurocode 8.

Eurocode 0, Basis of structural design
Eurocode 1, Actions on structures
Eurocode 2, Design of concrete structures
Eurocode 3, Design of steel structures
Eurocode 4, Design of composite steel and concrete structures
Eurocode 5, Design of timber structures
Eurocode 6, Design of masonry structures
Eurocode 7, Geotechnical design
Eurocode 8, Design of structures for earthquake resistance

 A complete package, and source of information on designing and understanding the Eurocodes, and the National Annexes.
The program is build up from groups of components based on the structural Eurocodes. You can design structural object based on the different Eurocodes, select National Annexes, adjust parameters, and do design and analysis of frame 2D-structures.
Design charts and graphs for use and understanding the Eurocodes are included.

A detailed design report is produced for the designed structural components. Assumptions, graphics, references to the Eurocodes and the National Annexes are shown in the report. The user can select the applicable National Annex. Design code parameters, material values and default values can be adjusted.


 Design elements included in the program



Eurocode 0, Basis of structural design

Basic design principles and verification equations
Partial safety factors
Load combinations
Material factors

EN 1990:2002/A1:2005/AC:2010
Eurocode - Basis of structural design



Eurocode 1, Actions on structures

        General action
            Category of use
            Imposed loads on building parts
        Snow loads
        Wind Loads

EN 1991-1-1:2002/AC:2009
Eurocode 1: Actions on structures - Part 1-1: General actions - Densities, self-weight, imposed loads for buildings

Snow loads

 Snow load on the ground
 Snow load on roofs
 Snow load on snow guards

Snow overhanging the edge of the roof

EN 1991-1-3:2003/A1:2015
Eurocode 1 - Actions on structures - Part 1-3: General actions - Snow loads

Wind loads

Wind velocity pressure
Wind pressure on vertical walls
Wind pressure on flat roofs
Wind pressure on monopitch roofs
Wind pressure on duopitch roofs

EN 1991-1-4:2005/A1:2010 /AC:2010
Eurocode 1: Actions on structures - Part 1-4: General actions - Wind actions

Eurocode 2, Design of concrete structures

EN 1992-1-1:2004/A1:2014
Eurocode 2: Design of concrete structures - Part 1-1: General rules and rules for buildings

   Design charts of Reinforced concrete

Concrete-steel properties, creep, shrinkage, concrete cover
Section capacity in bending, shear and axial loading
Design charts for bending
Design charts for columns in single and double bending
Effective length of columns
Design charts for deflection control

Reinforced concrete slabs


Slab sections in bending

Ribbed slab sections in bending

Flat slab sections punching shear

         Slab sections in bending, lightweight concrete

One way continuous slabs

Cantilever slabs

Two way slabs

  Reinforced concrete beams


   Rectangular beam cross section in bending

   T beam cross section in bending

   Beam cross section in torsion

   Beam cross section, lightweight concrete

   T beam cross section, lightweight concrete

   One span beams in composite loading

   Continuous beams with distributed loads



  Reinforced concrete columns

    Column section in biaxial bending

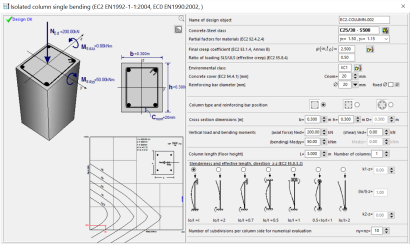

    Isolated column in simple bending

    Isolated column in double bending

    Column strength (single eccentricity)

 Eurocode 3 - Structural steel
EN 1993-1-1:2005/AC:2009
Eurocode 3: Design of steel structures - Part 1-1: General rules and rules for buildings
EN 1993-1-3:2006/AC:2009
Eurocode 3 - Design of steel structures - Part 1-3: General rules - Supplementary rules for cold-formed members and sheeting
EN 1993-1-5:2006/AC:2009 /A1:2017
Eurocode 3 - Design of steel structures - Part 1-5: Plated structural elements
EN 1993-1-6:2007/AC:2009/A1:2017
Eurocode 3 - Design of steel structures - Part 1-6: Strength and Stability of Shell Structures
EN 1993-1-7:2007/AC:2009
Eurocode 3 - Design of steel structures - Part 1-7: Plated structures subject to out of plane loading
EN 1993-1-8:2005/AC:2009
Eurocode 3: Design of steel structures - Part 1-8: Design of joints
Tables and graphs from Eurocode 3

Flexural buckling
Lateral torsional buckling
Effective length of columns

Steel sections

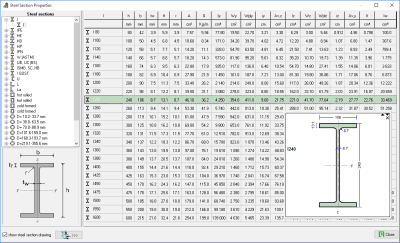

Steel section properties, all international profiles
Classification and resistance of steel cross sections

  Resistance of steel cross section

Single actions
Double actions
Combined actions

Buckling resistance
Buckling, members in compression Nc
Buckling, compression, bending Nc-My-Mz

Lateral torsional buckling My
Lateral torsional buckling Nc-My

   Design of beams

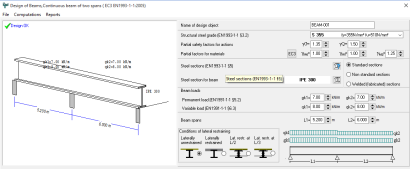

One span beams
Two span continuous beams
One span with cantilever

Design of columns

Column under axial load
Column under axial load and bending
Column under axial load and double bending

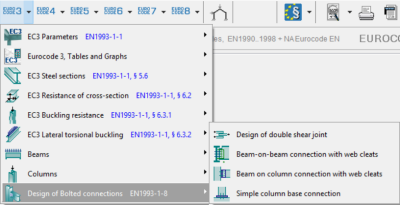

   Design of bolted connections

Double shear joints
Beam to beam connection with web cleats
Beam to column connection with end plate
Simple column base connection

Eurocode 4,
Design of composite steel and concrete structures

  Steel-Concrete composite floor

  Timber concrete composite floors

EN 1994-1-1:2004 Design of composite steel and concrete structures, General rules and rules for buildings





Eurocode 5, Design of timber structures

bullet Design of cross-sections in Ultimate limit state
bullet Design of timber connections
bullet Design of timber beams
bullet Design of timber floors
bullet Design of timber roofs


EN 1995-1-1:2003 Design of timber structures – General – Common rules and rules for buildings
EN 1995-1-2:2003 Design of timber structures – General – Structural fire design

Ultimate limit state

Design of cross-sections in Ultimate limit state

    Tension
    Compression
    Bending
    Shear
    Torsion
    Stability

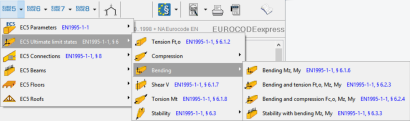

Design of various cases of single or combined action according to Eurocode 5, EN 1995-1-1:2004 § 6, round and rectangular sections.

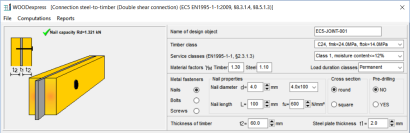

Design of timber connections

Types of connections

The Capacity Rd is computed according to Eurocode 5, EN 1995-1-1:2004 § 8.

Design of timber beams

          Simply supported
          Continuous over two spans

Design of floors


Design of single span floors
         Design of two span floors

 The internal forces are computed at the ends and the middle span of the floor beam and the elastic bending deformations at midspan, for all the load combinations according to Eurocode 0, 1 and 5.
All the checks of Eurocode 5, EN 1995-1-1:2004,
§ 6 are performed in ultimate limit state.
The deflections are checked in serviceability limit state according to Eurocode EN 1995-1-1:2004,
§ 7.
The Eurocode EN 1995-1-1:2004,
§ 7.3. considerations are taken into account for the check of beam vibrations.

Design of Roofs

Truss rafter roofs

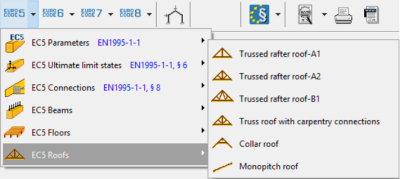

Truss rafter roofs, carpentry connections
Collar roofs
Monopitch roofs

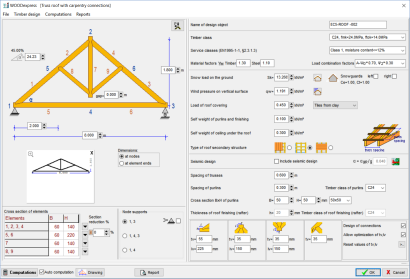

The design is based on a finite element analysis of the truss structure. The truss is considered as a two dimensional frame structure, and the stiffness of the connections is adjusted according to the selected degree of stiffness. The natural frequencies of the roof trusses are computed from a dynamic analysis.

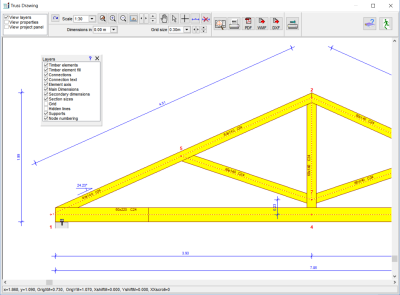

Automatic generation of truss drawings.
Detailed drawing of the truss structure and the connections are automatically produced. A specialised CAD modulus is included to customise, preview and print the drawings. Export to DXF and PDF files.

Structural fire design
Structural fire design is performed for every stress case. The structural fire design is performed according to Eurocode 5, part 1-2, reduced cross section method..

Connections properties you can specify are:steel plate type, regular or BMF, plate thickness, the degree of stiffness of connections, the type and size of the connection nails.
You can also select to use single or multiple plates in the joints with more than two members.
Splices are designed automatically for long timber members.



Eurocode 6, Design of masonry structures

bullet Mechanical properties of masonry
bullet Eurocode 6 design charts
bullet Eurocode 6 Strength
bullet Masonry Design


Eurocode 6 EN 1996-1-1:2005 Design of masonry structures, General rules for reinforced and unreinforced masonry structures

Mechanical properties of masonry

Material factors
Compressive strength
Shear strength
Flexural strength

Eurocode 6 design charts

Out of plane eccentricity
Reduction factor for slenderness and eccentricity
Bending moment coefficients for flexural design

Eurocode 6 Strength


Compressive strength
          Shear strength
          Flexural strength

Masonry Design

Masonry subjected to vertical load
Masonry subjected to shear load
Masonry subjected to lateral load

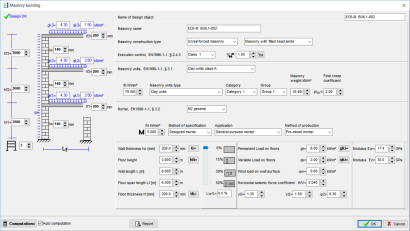

Masonry building design



Eurocode 7, Geotechnical design

bullet Eurocode 7 parameters
bullet Soil bearing capacity
bullet Spread footings

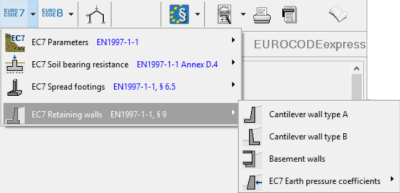

bullet Retaining walls

EN 1997-1:2004/AC:2009
Eurocode 7: Geotechnical design - Part 1: General rules

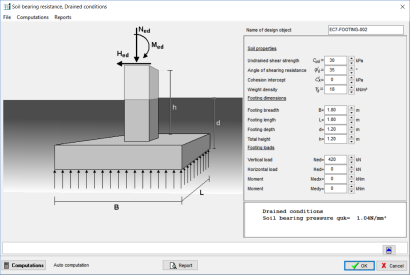

Soil bearing capacity

Drained conditions
Undrained conditions

The design bearing resistance is calculated using analytical methods of  Annex D in Eurocode 7.



Spread footings

    Flexible centrically loaded footings
    Flexible eccentrically loaded footings
    Footings of steel columns (pinned)
    Footings of steel columns (fixed)

Vertical loading and moments at the top.

Exact computation of pressure distribution under the footing. Geotechnical design using Eurocode 7, EN 1997-1:2004. Load combinations according to Eurocode 7 (EQU, STR, GEO load cases).


Retaining walls

   Cantilever type without back heel
   Cantilever type with back heel
   Basement walls
   Earth pressure coefficients (active and passive)

  •  Walls with very small back heel. The active earth pressure is computed using Coulomb's theory at the back face of the wall.
  • Walls with back heel. The active earth pressure is computed using Rankine's theory at a vertical surface at the end of the heel.
  • Basement walls. Earth pressure at rest.

Earthquake analysis according to Eurocode 8 (EC8),  Mononobe-Okabe.

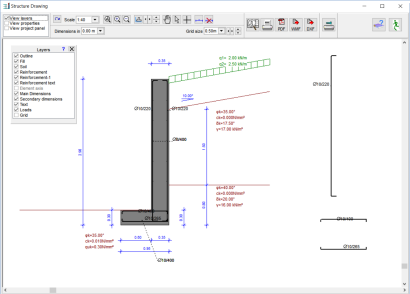

 CAD drawing of retaining walls with reinforcement.

Eurocode 8,
Design of structures for earthquake resistance

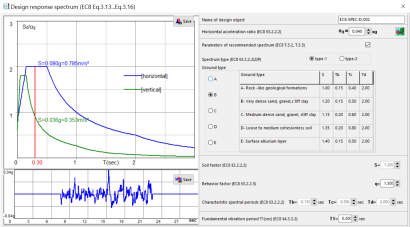

  Elastic response spectrum

  Design response spectrum

EN 1998-1:2004/A1:2013/AC:2009
Eurocode 8: Design of structures for earthquake resistance - Part 1: General rules, seismic actions and rules for buildings

  Structural analysis

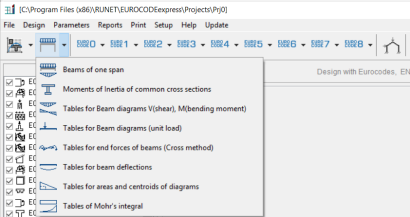

 Helpful tables for structural analysis

Beams of one span
Moments of intertia  of common cross sections
Tables for Beams diagrams V (shear) M, (moment)
Tables for Beams diagrams V (unit load)
Tables for end forces of beams (Cross method)
Tables for beams deflections
Tables for areas and centroids of diagrams
Tables of Mohr's integral

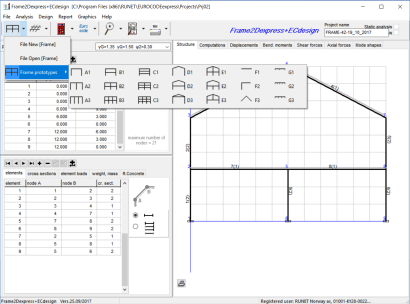

FRAME2D Design

In the EUROCODEexpress is included a program for Design of 2-dimensional Frame structures and grillages.

A 2-dimensinal finite element model, with additional design in ultimate limit state of the members from reinforced concrete, structural steel or structural timber, according to Eurocodes 2,3 or 5.



Go to order

 Parameters:

NA-National Annex, Select the National Annex to apply in the design

Design Parameters, Check and select options or modify the various design parameters of every particular Eurocode.

Materials, characteristic material properties for concrete, steel, timber, soil etc..can be adjusted. It is advisable to consult the National Application Document of the Eurocodes 0,1,2,3,4,5, 6, 7, 8.

Snow load on the ground Default region and snow zone

Basic wind velocity Default region and wind zone

Seismic design Default region and seismic zone
